Name: 4060 ST NX
Brand: SCOR
SKU: 30002923
Price: 4299.0 EUR
Availability: OutOfStock

4060 ST NX | SCOR | bikes | Mountain, Mountain | Trail

Blue Steel

140mm Rear / 150mm Front Travel, 29” Wheels
RockShox Lyrik Select / RockShox Super Deluxe Select+ Suspension
SRAM NX Eagle Drivetrain, SRAM Code R Brakes

EUR 4.699,00 EUR 4.299,00

Tax included.

SKU: 30002923

Size

Compatible Parts & Accessories

Add a Shock

Shipped to your local bike shop

Check availability within our Retailer Network

[{"id":48081330405708,"title":"S","option1":"S","option2":null,"option3":null,"sku":"30002923","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"4060 ST NX - S","public_title":"S","options":["S"],"price":429900,"weight":17000,"compare_at_price":469900,"inventory_management":"shopify","barcode":"7630027889635","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":48081331454284,"title":"M","option1":"M","option2":null,"option3":null,"sku":"30002924","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"4060 ST NX - M","public_title":"M","options":["M"],"price":429900,"weight":17000,"compare_at_price":469900,"inventory_management":"shopify","barcode":"7630027889727","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":48081331781964,"title":"L","option1":"L","option2":null,"option3":null,"sku":"30002925","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"4060 ST NX - L","public_title":"L","options":["L"],"price":429900,"weight":17000,"compare_at_price":469900,"inventory_management":"shopify","barcode":"7630027889710","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":48081332273484,"title":"XL","option1":"XL","option2":null,"option3":null,"sku":"30002926","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"4060 ST NX - XL","public_title":"XL","options":["XL"],"price":429900,"weight":17000,"compare_at_price":469900,"inventory_management":"shopify","barcode":"7630027889703","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

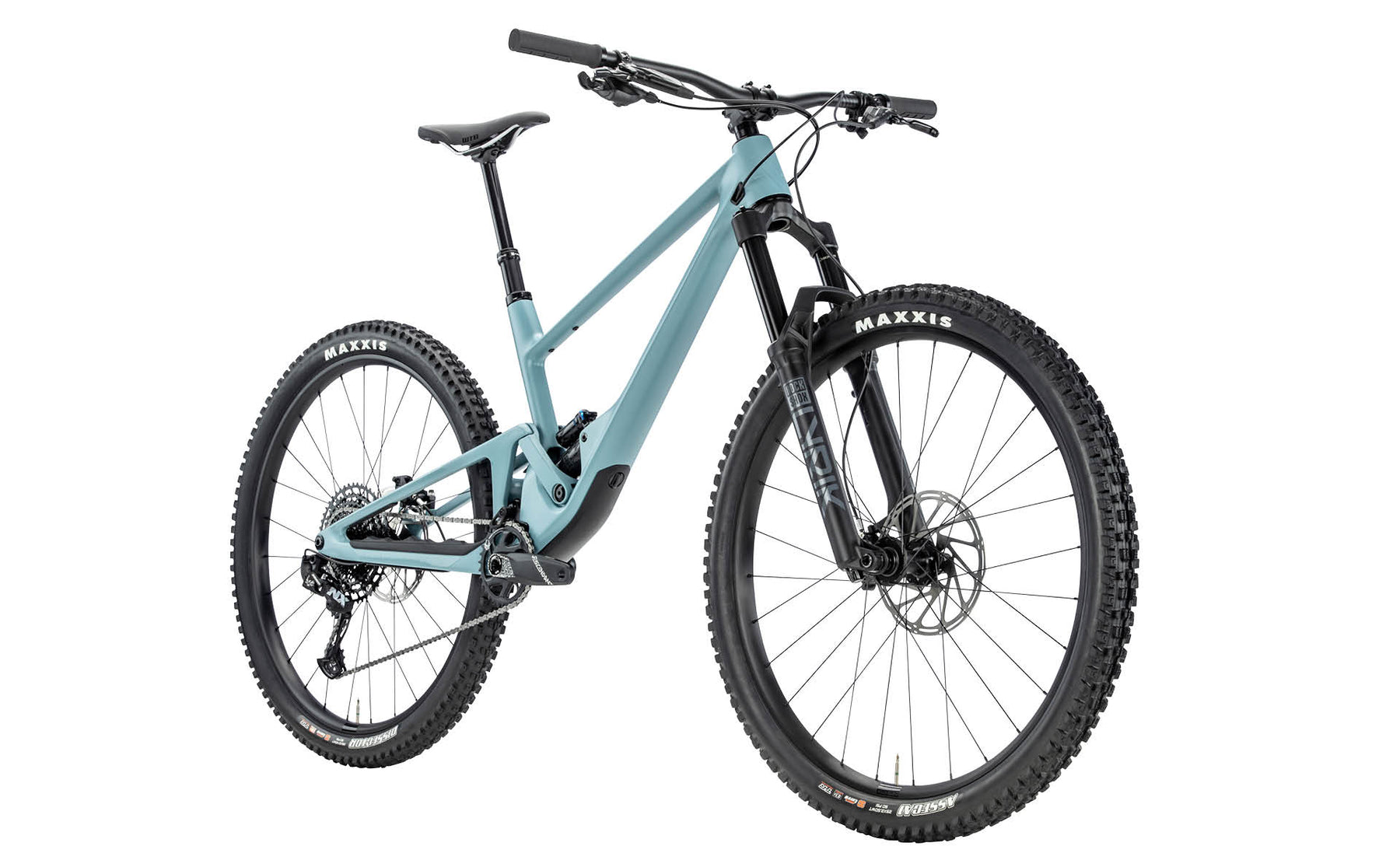

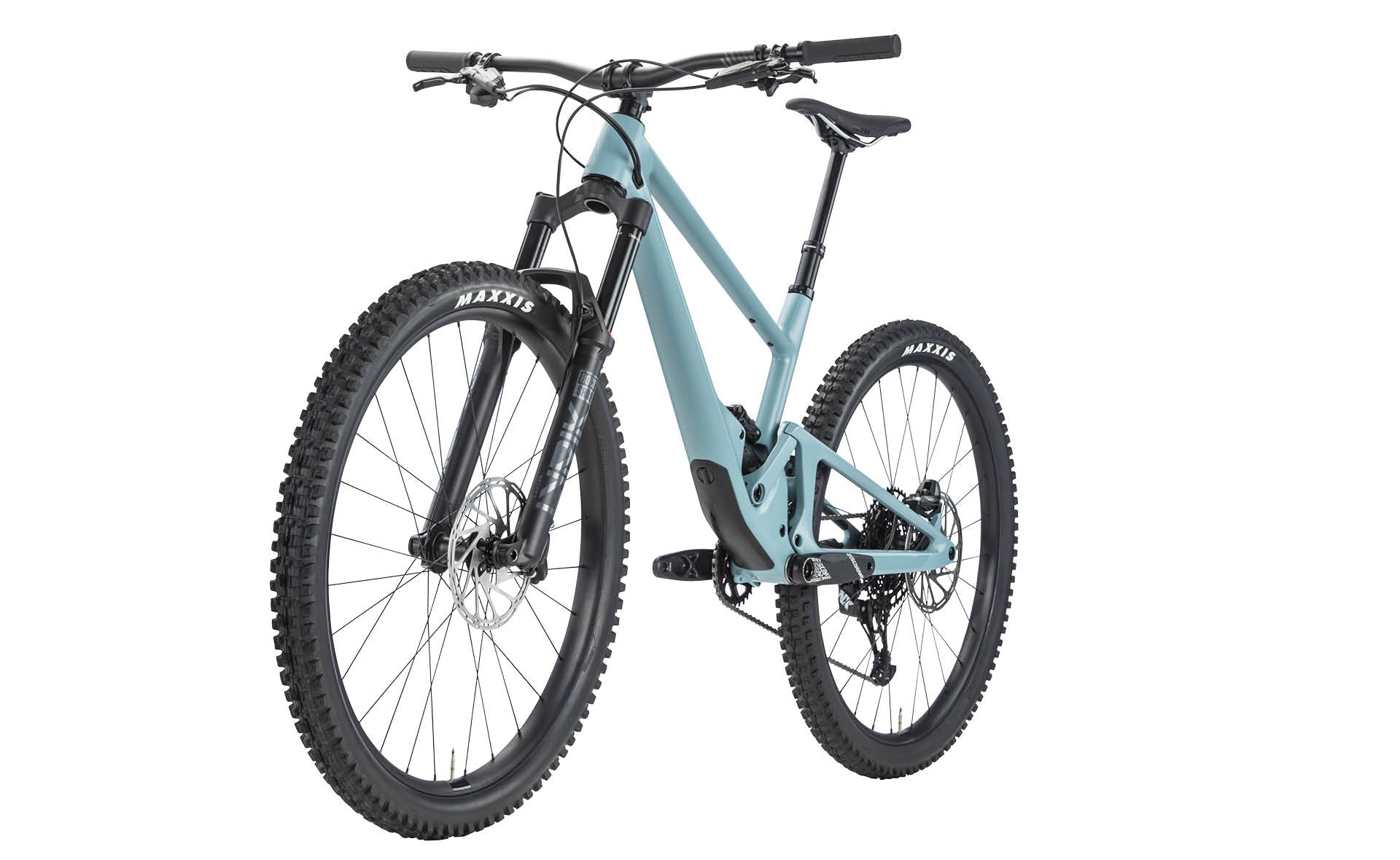

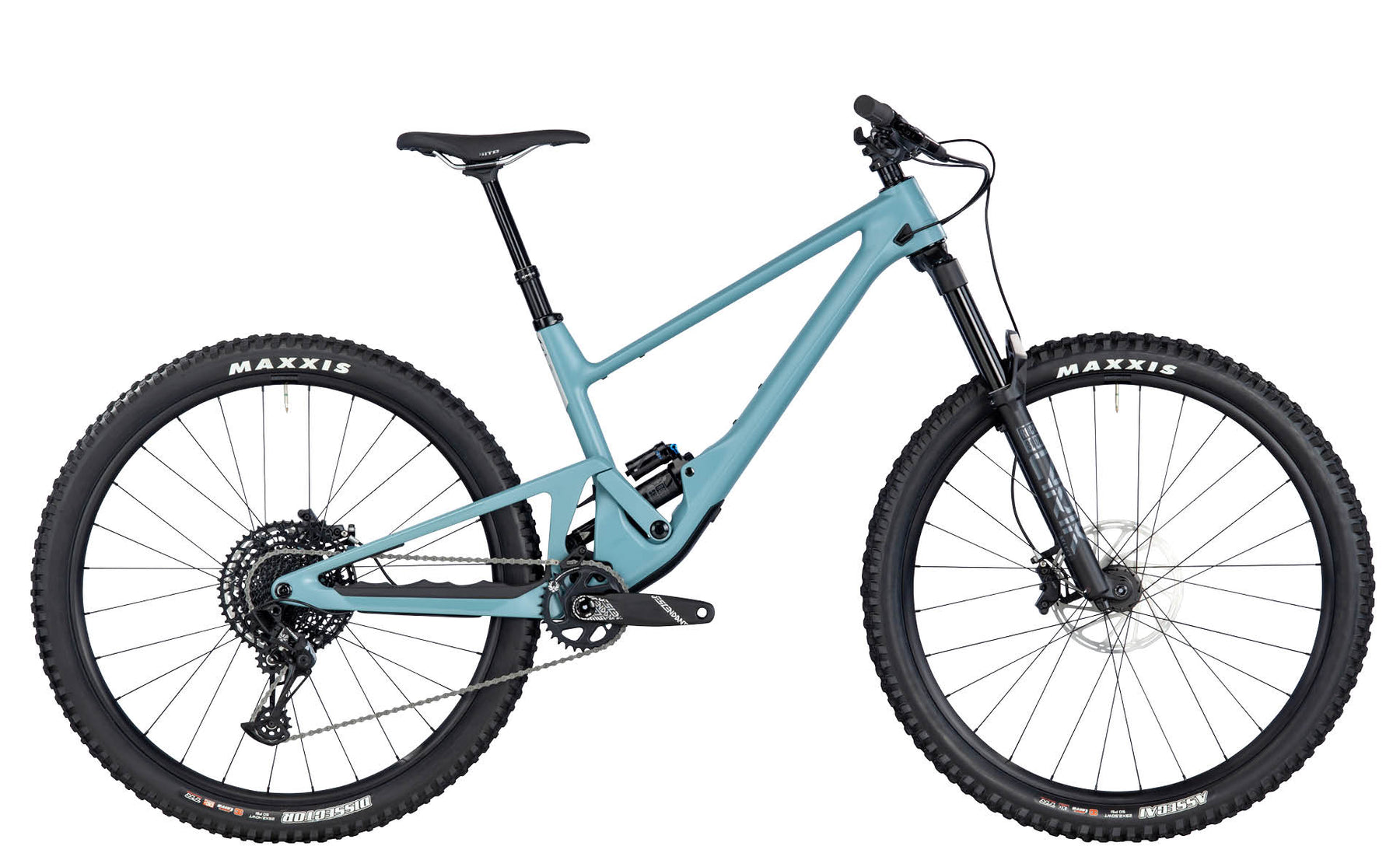

A trail bike that punches way above its class, the 4060 ST NX gives you the confidence to take on the toughest trails right out of the box. A lightweight full-carbon frame with quality suspension components is happy to go with the flow or get deep-down and gnarly. The bulletproof build kit means you’re good to go from the get-go and with everything you need and nothing you don’t, you can focus on having fun on the trail ahead.

Technology

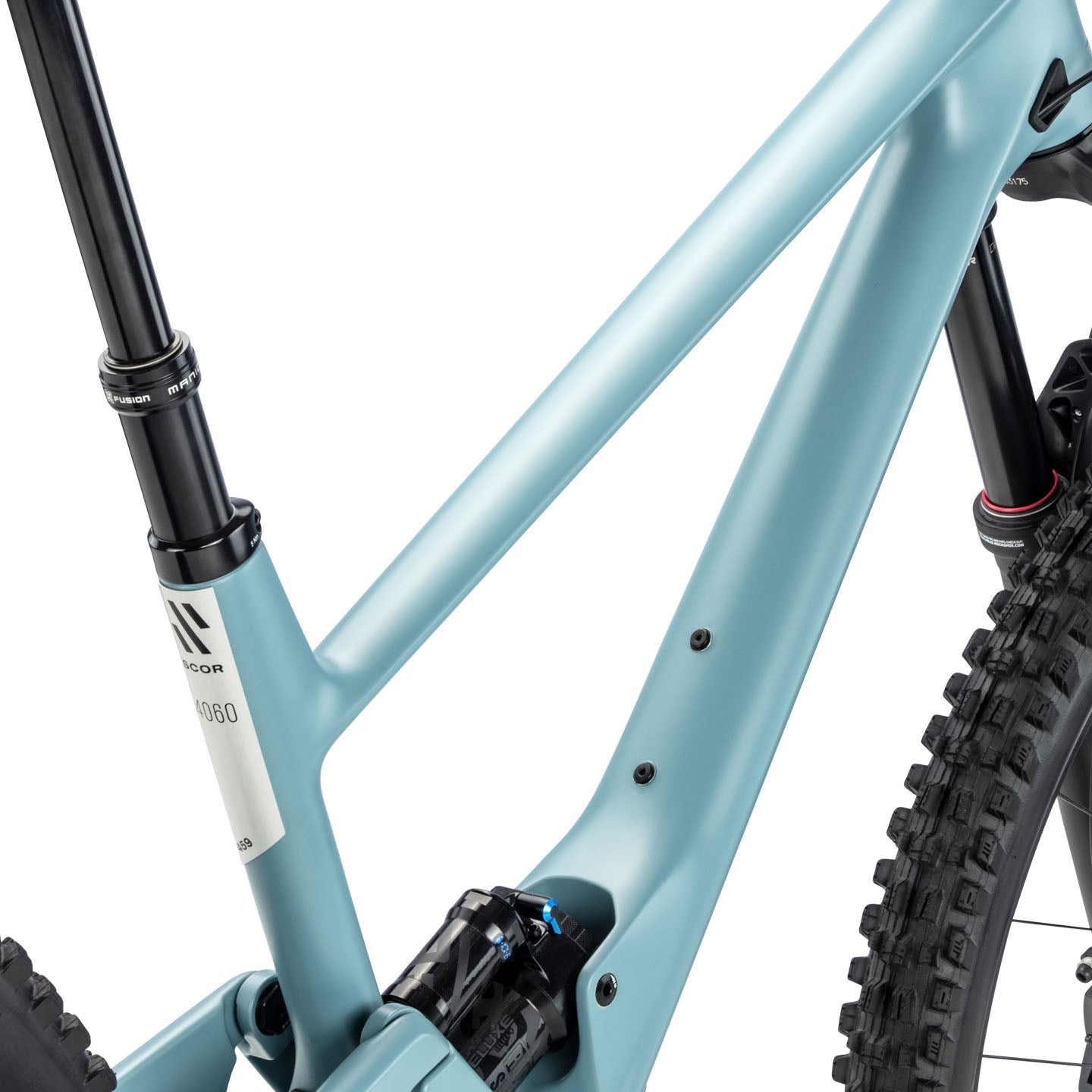

Full Carbon Frame

Designed for feel, engineered with precision. Expertly laid up high-quality composites make for a frame that is light, stiff and strong enough to shrug off drops, bails and fails. Guided internal cable routing means its beauty is more than skin deep.

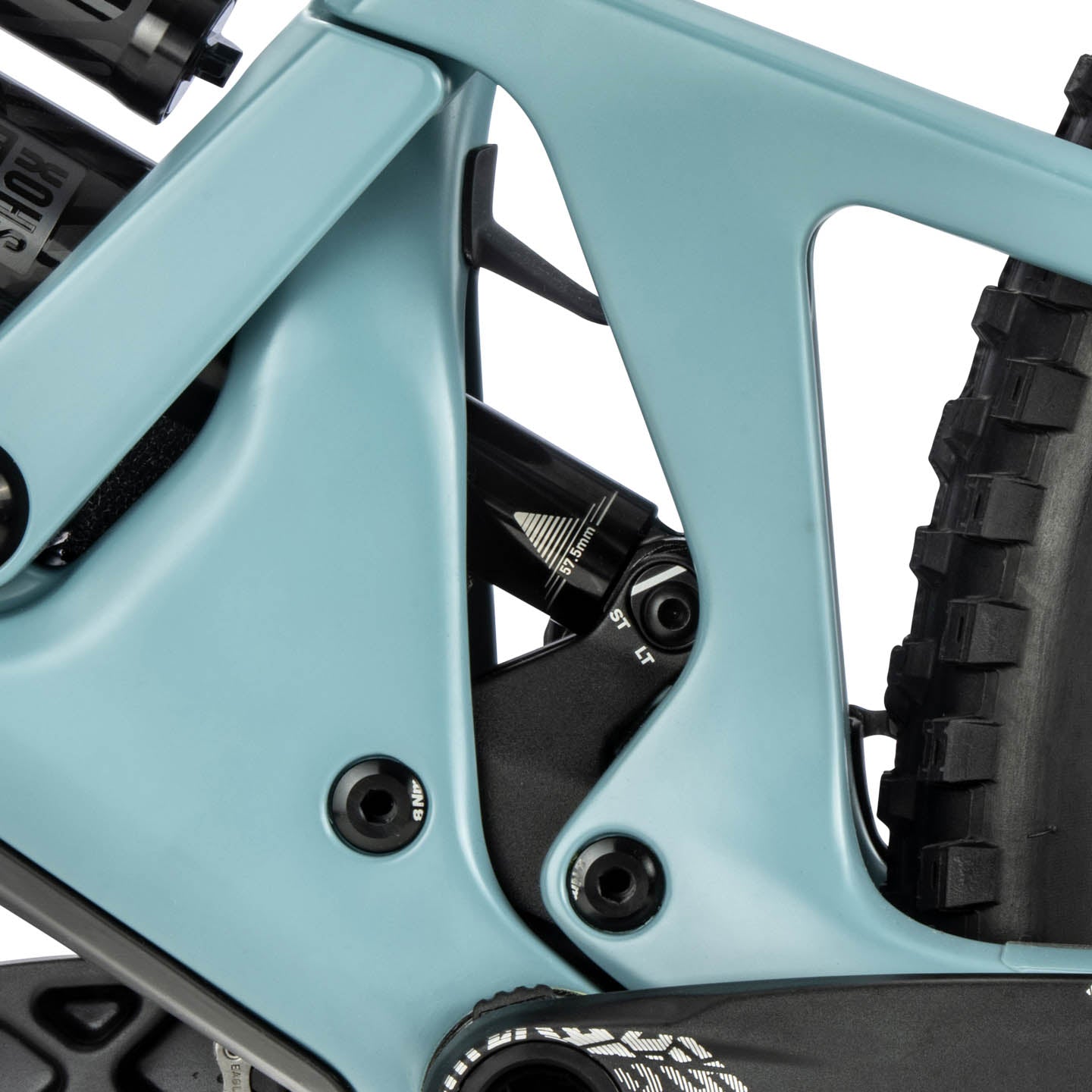

Options

One frame, two travel options. Choose from 160mm or 140mm of rear travel just by changing the rear shock, either way a flip-chip and stealth angle-adjust headset mean you won’t be compromising on geometry.

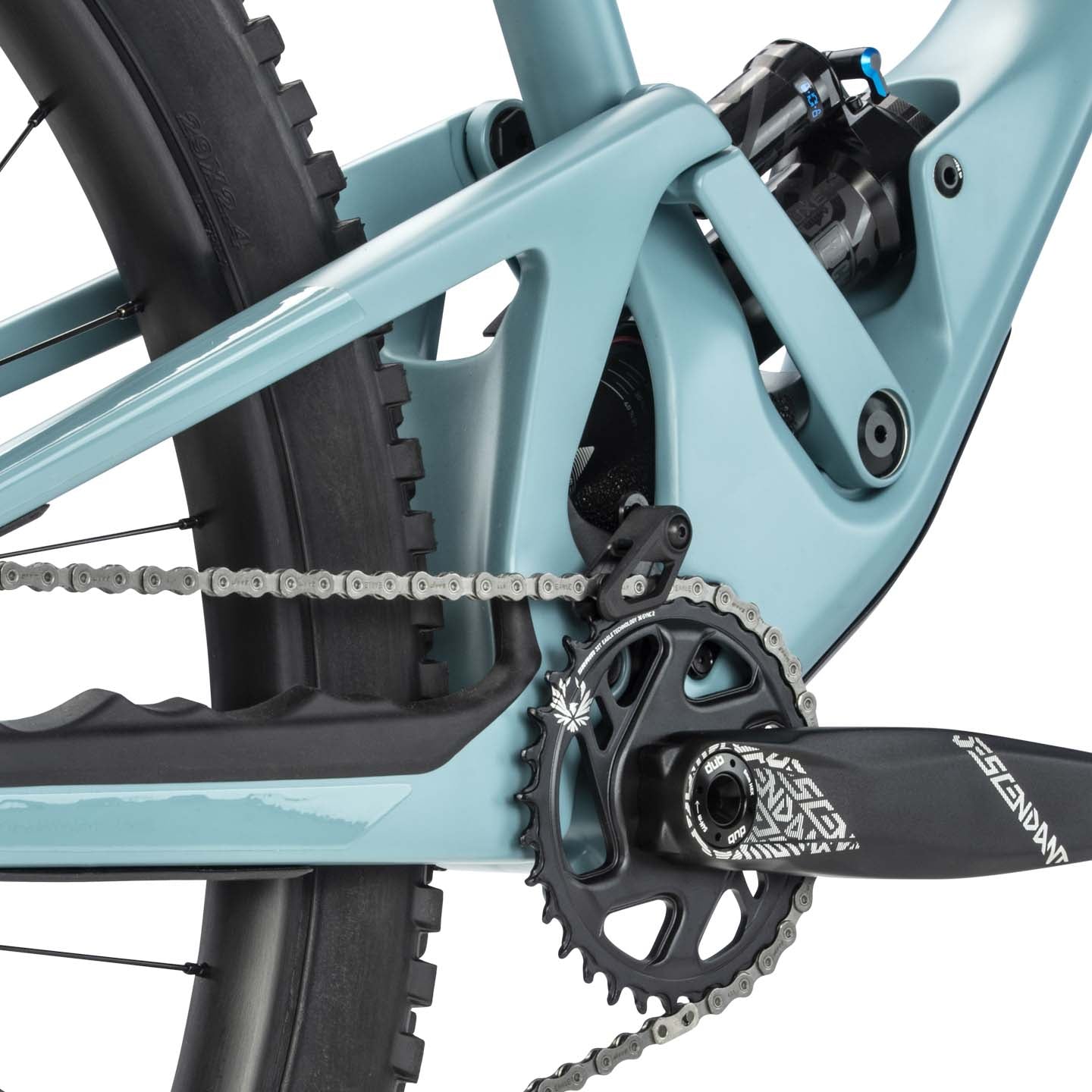

Superior Suspension

Our lower-link activated virtual pivot suspension design is supple off the top for all time grip with progressive support for when you go all too deep. Smart design keeps things stiff, low and air or coil shock compatible.

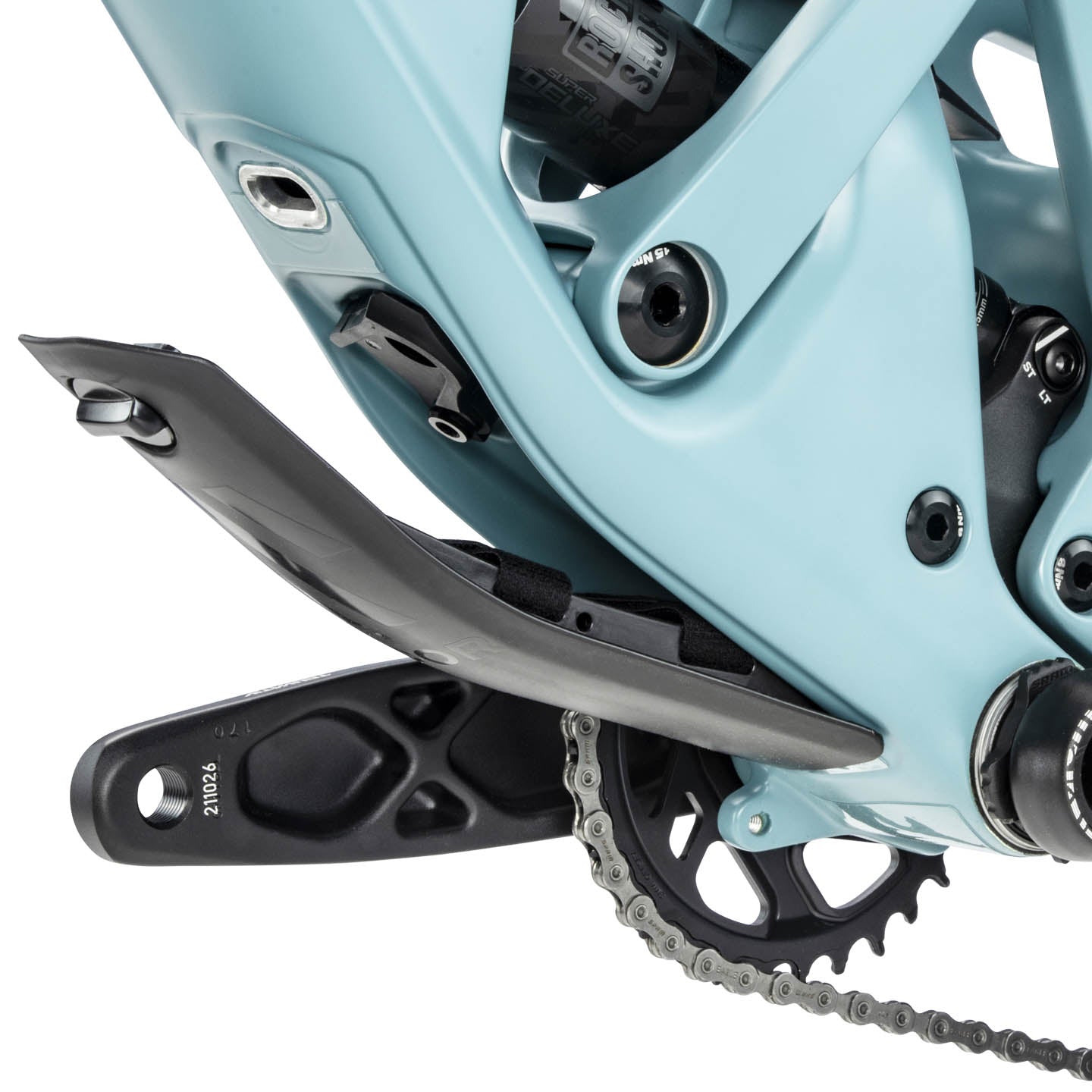

Stash Box

Mechanicals happen, but they don’t have to ruin your ride. With a spare Universal Derailleur Hanger (SRAM UDH) included and enough space for a multitool and tire plugs, the downtube stash box keeps your trailside essentials on hand. Ride on.

Technical Details

Frameset

Fork:
RockShox Lyrik Select RC | 150mm Travel | 44mm Rake

Suspension

Front Suspension:
RockShox Lyrik Select RC | 150mm Travel | 44mm Rake

Rear Suspension:
RockShox Super Deluxe Select+ RT | 205 x 57.5mm Trunnion

Cockpit

Stem:
SCOR Alloy Stem | 31.8mm Bar Bore | 35 mm Length | 0° Angle

Grips:
VP VPG-125A

Seat

Seatpost:
X-Fusion Manic | S 125mm | M 150mm | L / XL 170mm Travel

Saddle:
WTB Silverado Steel SL | Medium

Drivetrain

Crankset:
SRAM Descendant 6K Eagle | 170 mm Length

Chainrings:
SRAM NX Eaglerings

Cassette:
SRAM NX PG-1230 Eagle

Cassette Size:
11-50T

Chain:
SRAM NX Eagle

Rear Derailleur:
SRAM NX Eagle

Shifters:
SRAM NX Eagle Trigger

Gears:
1 x 12

Bottom Bracket:
DUB Interface

Brakes

Brake Levers / Calipers:
SRAM Code R

Rotors:
SRAM Centerline | 6-Bolt

Rotor Size (F/R):
200mm

Wheels

Hubs (F/R):
XDX-530 | 28 Spokes | Sealed Cartridge Bearings

Tires:
Maxxis Assegai 29 x 2.5" 3C MaxxTerra Exo TR (F) | Maxxis Dissector 29 x 2.4" 3C MaxxTerra Exo+ TR (R)

Tubeless Information:
Tubeless Ready Rims | Tubetype Tires

Additional Information

Tire Clearance:
Width: 64mm | Diameter: 750mm

ASTM Classification:
Level 4

System Weight Limit:
120kg

General Product Safety Regulation (GPSR):
Safety Instructions GPSR (EU)
Responsible person according to GPSR (EU)

Size	S	M	L	XL
Rider Height	155 - 170	165 - 180	175 - 190	185 - 200
BB Drop (SLACK)	31	31	31	31
BB Drop (STEEP)	29	29	29	29
BB Height (SLACK)	338	338	338	338
BB Height (STEEP)	340	340	340	340
Chainstay	433	433	433	433
Fork Length	560	560	560	560
Fork Rake	44	44	44	44
Front Center (SLACK)	765	790	815	845
Front Center (STEEP)	752	777	802	832
Head Tube	87	99	115	127
HT Angle (SLACK)	64.5	64.5	64.5	64.5
HT Angle (STEEP)	65.5	65.5	65.5	65.5
Reach (SLACK)	440	465	490	520
Reach (STEEP)	436	461	485	516
Seat Tube	400	425	440	470
ST Angle @750mm Saddle Height (SLACK)	77	77	77	77
ST Angle @750mm Saddle Height (STEEP)	76.5	76.5	76.5	76.5
ST Angle Actual (SLACK)	69.4	69.4	69.4	69.4
ST Angle Actual (STEEP)	69	69	69	69
ST Angle Effective (SLACK)	78.5	78.5	78.5	78.5
ST Angle Effective (STEEP)	78	78	78	78
Stack (SLACK)	597	608	622	633
Stack (STEEP)	599	611	625	636
Stand Over Height (80 in Front of BB)	752	764	768	784
Stand Over Height (Lowest Point)	714	723	731	741
Top Tube (SLACK)	560	589	620	654
Top Tube (STEEP)	561	590	621	655
Wheelbase (SLACK)	1198	1223	1248	1278
Wheelbase (STEEP)	1185	1210	1235	1265
